Hammerlock + Shackle for Trailer Chain
Based on this design, the hammerlock enlarges the hole in the tow bar, making it easier to find than an embarrassed angle. It also extends the chain slightly
Hammerlock size:
7/8mm WLL 2000kg, Breaking Force 8000kg
10mm WLL 3150kg, Breaking Force 12600kg
D Shackle size:
10mm WLL 1000kg, Breaking Force 6000kg
11mm WLL 1500kg, Breaking Force 8000kg
Standard AS2741-2002 ( AS2741)
Each kit contains:
2pcs Hammerlocks + 2pcs D Shackles (Choose size at the select box)

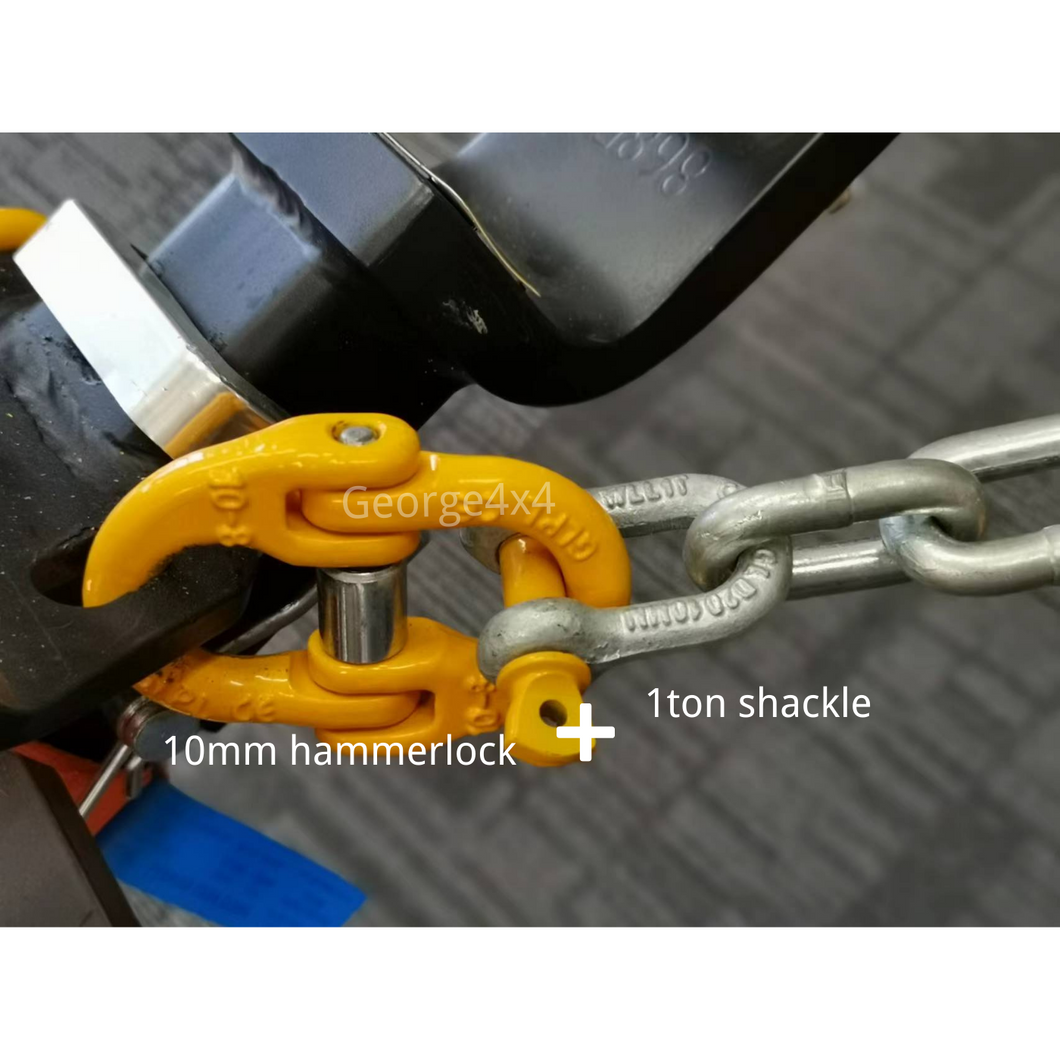

The chain used in the picture is 10mm
See the picture for how they are connected.
FEATURES:
- Hammerlock All Meet Grade 80 standard with Figure Tested over 20000 times.
- AS 3776 Compliant
- Made of G80 Steel
- Shackle has Alloy steel over-sized yellow pin fitted
- Test Certificates Available Upon Request
- Marked With Chain Size / Grade / and Manufacture Code (tracking code)
- Item # indicated in the dimension figures
- hammerlock ( connecting link) is the best chain extender extend.
check our hammerlock and yellow Hooks Setup alternatively instead of Shackle
